Ningbo Xin Chang Machinery Co.,Ltd
ブランド: 新昌市
Voltage : 380 or Customized
Automatic Grade : Automatic
Certification : CCC, ISO9001, CE
保証: 12か月
Customized: Customized
調子: 新しい
Bending Mode: by Servo Motors
Stroke Setting Model: by Servo Motors
Solenoid: Airtac
Guide Rail: THK
Transport Package: Wooden Case
Specification: pipe cutting machine
Trademark: xinchang
Origin: Ningbo
HSコード: 84622110
生産能力: 100 Set/ Year
カスタマイズ: Available

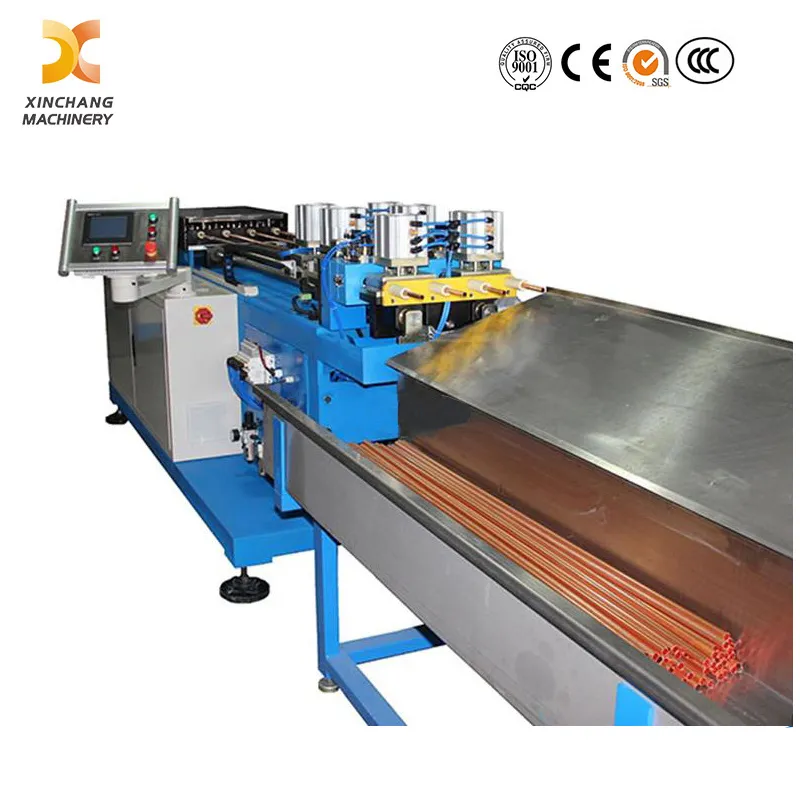

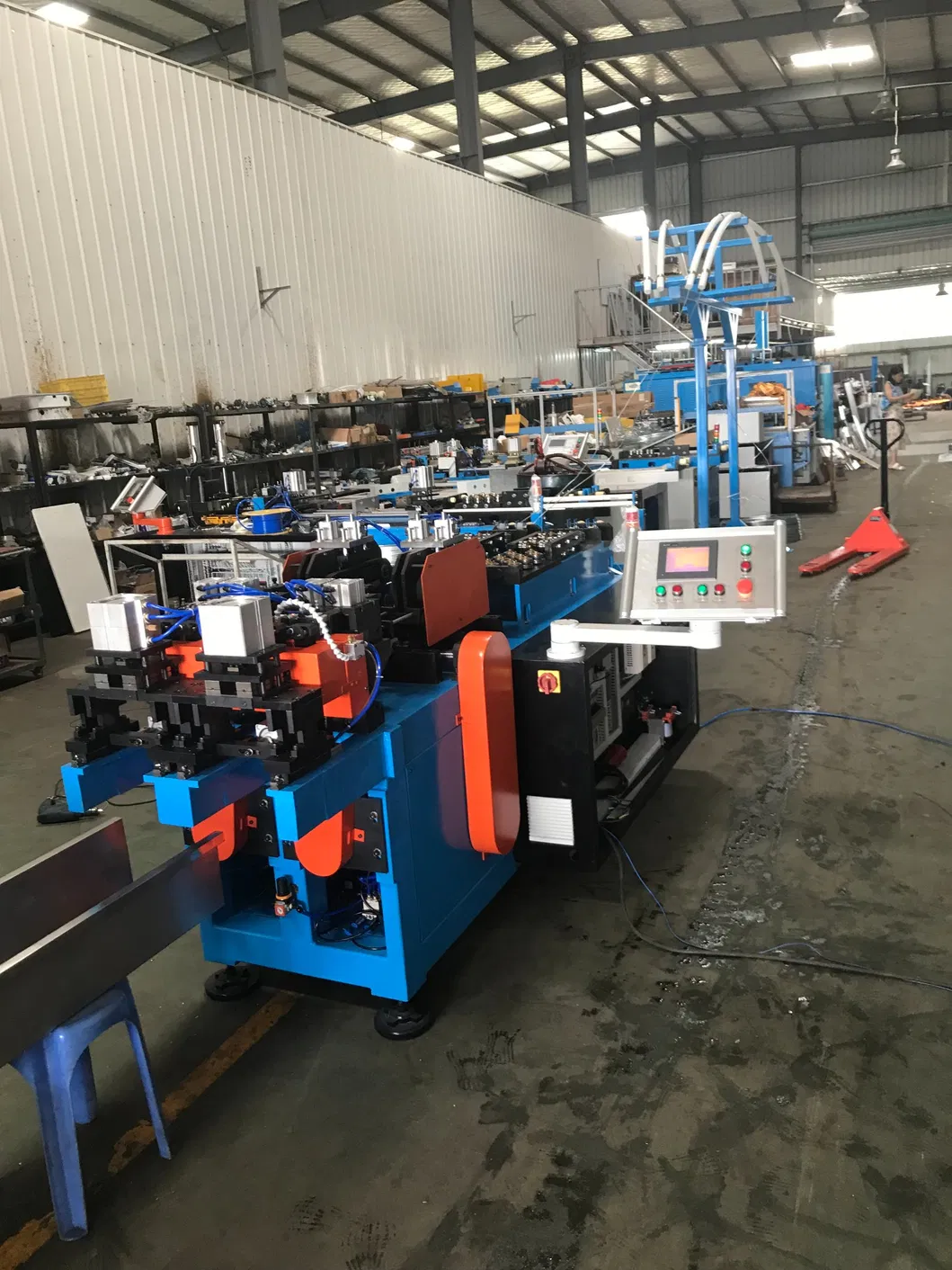

Type: Tube Cutting Machine
使用法: Pipe
についてのサポート: 100 Set/ Year
| Item | Parameter and specifications | Note | |

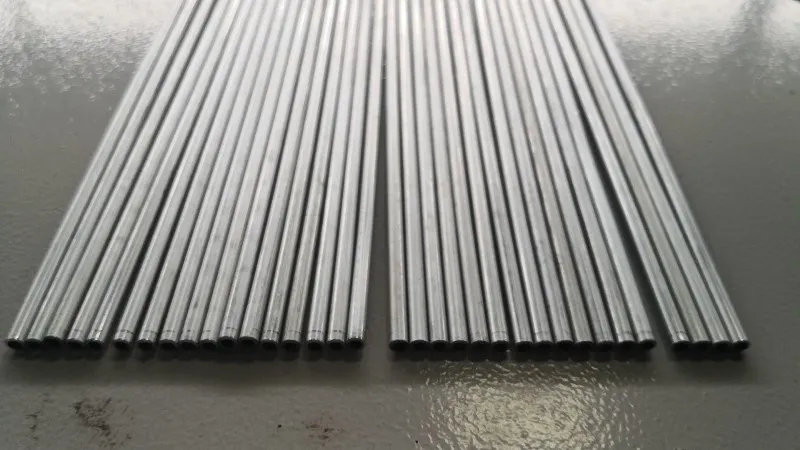

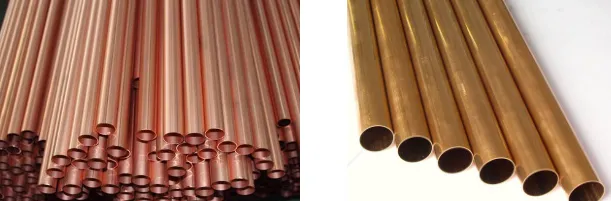

| Processing materials | Material | Soft state, semi-hard, copper tube ,Al tube and steel tube | Or equivalent standard products |
| pipe outside diameter and wall thickness | Ф1.8~Ф20,Wall thickness0.2~1mm | customized at needs | |
| Coil dimensions | Ф900-1100 | ||
| Processing capacity | Tube Cutting Number | 4 pcs | |
| Cutting length | Min: 120 mm , Max: unlimited. | No pretensioning if <100 | |
| Feeding Stroke | Continuous feed, unlimited length | ||
| Productivity | 8 times /min(L=1000) | ||
| Precision | Repeat length error | L≤1000 mm≤0.3mm L≥1000 mm ≤0.6mm | |
| The necking rate of inner diameter | f < 20% (Original inside diameter - after-cutting internal diameter) / wall thickness | ||
| Flatness | ≤0.5mm (L=1000) | ||
| Surface | No significant pull, draw, crushed marks/scratch; No burrs | ||
| Environment | Power supply | 3 phase 4 wire 380V \ 50Hz \ 3Kw | Isolation transformer |
| Air pressure | 0.5--0.7MPa | ||
| CNC or PLC | ICM CNC or Mitsubishi PLC |
| Frequency converter | Mitsubishi |
| Touch screen(HMI) | Mitsubishi |
| Encoder | Nemicon |
| Solenoid | AirTac |
| Proximity switch and sensor | Autonics |
| Low-volt electric parts | Siemens or IDEC |
| Relay | IDEC |
| Lead screw | TBI or NSK |
| Guide rail | THK |
