モデル ナンバー: SKCKW40-R1
応用: Metal
Process Usage: Cnc Non-Conventional Machine Tools
Movement Method: Linear Control
Numerical Control: NC
Processing Precision: 0.05~0.06(mm)
Performance Classification: Mid-Range CNC Machine Tools
認証: Ce, Iso 9001
調子: 新しい
名: Hole Punching Machine
Key: Bending Machine
Bending Mode: by Servo Motors
Stroke Setting Model: by Servo Motors
Transport Package: Wooden Case
Trademark: Xin chang
Origin: Ningbo
生産能力: 100set/ Year
カスタマイズ: Available
After-sales Service: Life Long
保証: 12か月
についてのサポート: 100set/ Year

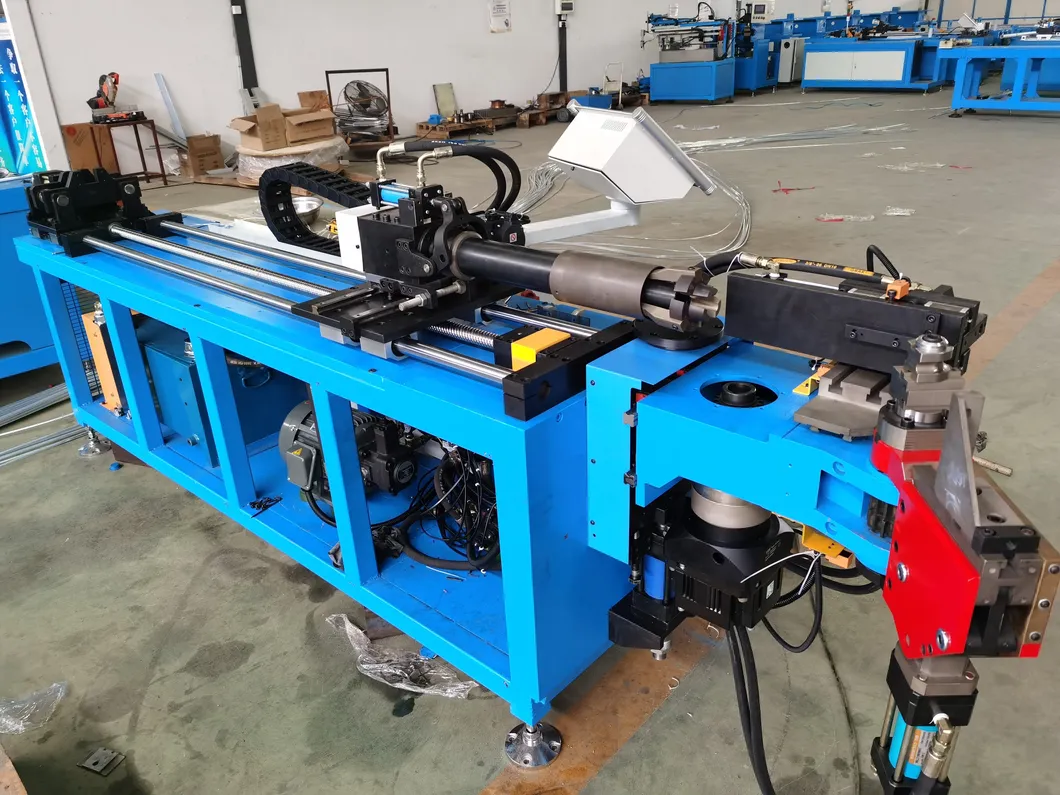

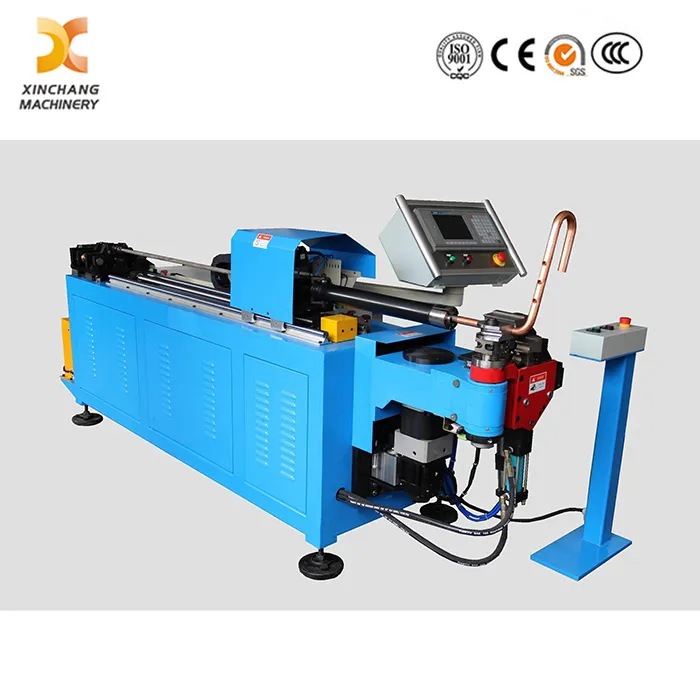

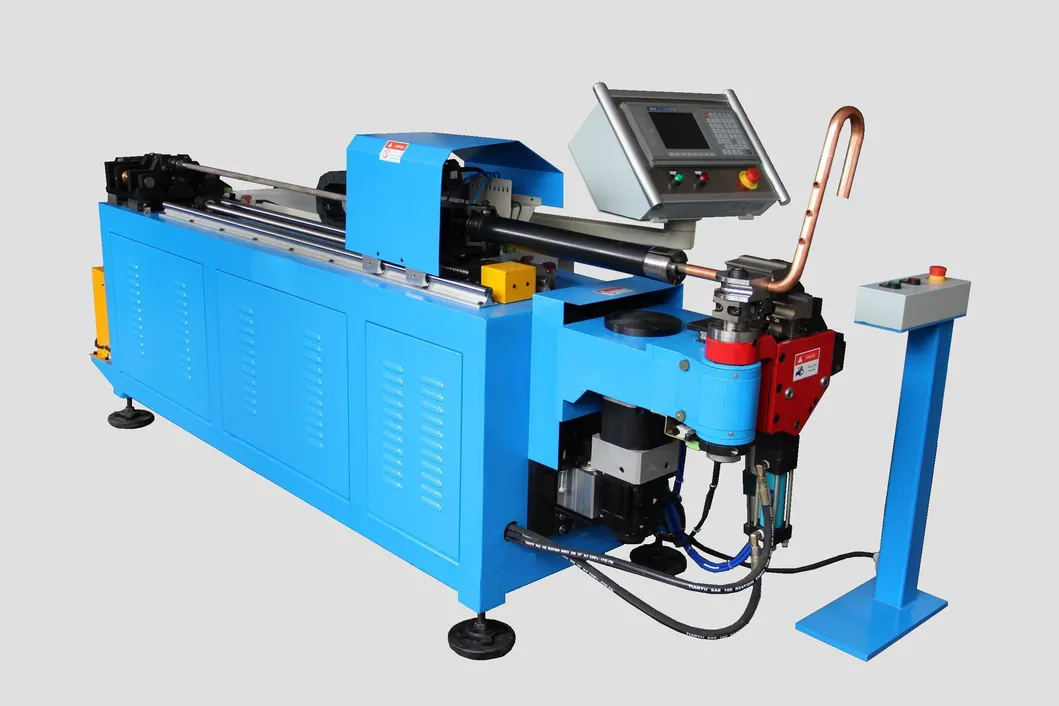

| Model | SKCKW40-R1 |
| Bending range (diameter × wall thickness mm) | Φ12-φ40×1.5 (copper pipe) |
| Mould direction | Right bending |
| Bending radius | R 20-100mm (at center line) |
| Workpiece length | Active type: 100-1,200mm, through type: 100-1,800mm; |
| Straight feeding stroke (Axis X) | 0--1200mm Speed:0--500mm/sec, Precision: ±0.05mm |
| Spatial rotation angle (Axis Y) | 0--±360° Speed:0--300°/sec Precision: ±0.05° |
| Bending angle (Axis Z) | 0--200° Speed:0--180°/sec Precision: ±0.05° |

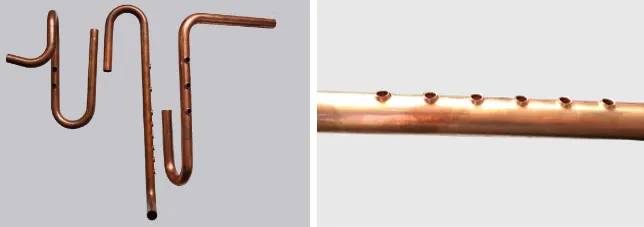

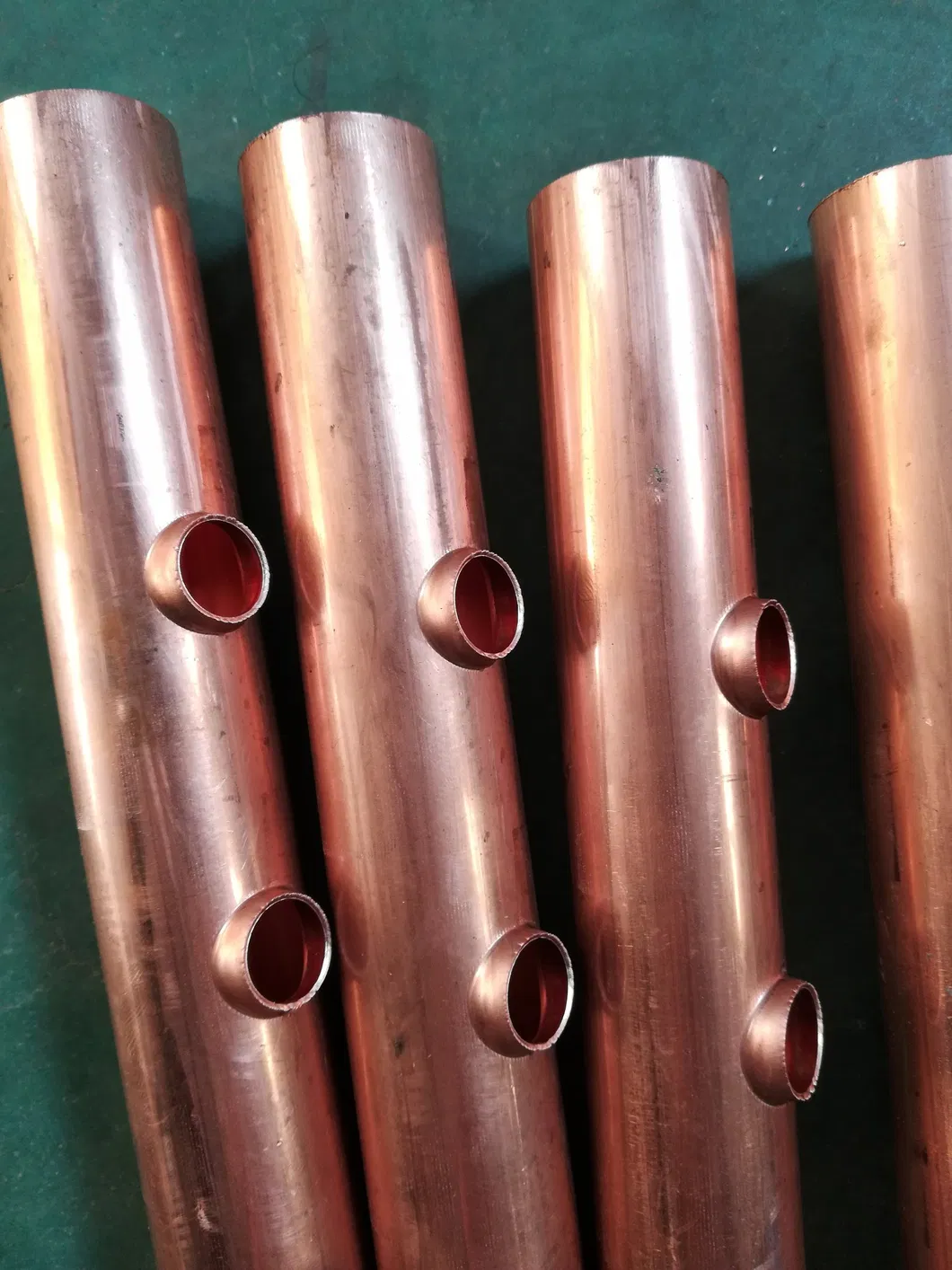

| Minimum processed pipe diameter for punching | Φ12mm*0.7 (copper) |
| Maximum processed pipe diameter for punching | Φ40mm*1.5mm (copper) |
| Maximum machining wall thickness for punching | 1.50mm |
| Minimum spacing between two holes | 19 mm |
| Maximum machining length of workpieces | 2000mm |
| Processing efficiency (punching) | 4 sec /each hole |
| Processing efficiency (bending) | 3-4 sec /each bending |
| Processing and punching error | ≤0.2mm |
| Processable materials | Copper, iron, stainless steel, aluminum |
| Electronic control | Numerical control system |
| Punching method | Internal pressing |
| Operating method | Manual, automatic |
| Power supply | Three-phase 380V |
| Total power | 10KW |
| Hydraulic motor power | 3.7KW |
| Hydraulic system pressure | 3-7MPA |
| Machine dimension | 3400*1000*1300 |
| CNC control system | Shenzhen |
| Hydraulic solenoid valve | Taiwan |
| Oil pump | Taiwan |
| Sensor | Autonics Korea |
| Air switch and low-volt apparatus | Siemens\ IDEC |
| Servo motor and driver | Mitsubishi Japan |
| Lead screw | TBI |
| Speed reducer | Taiwan |

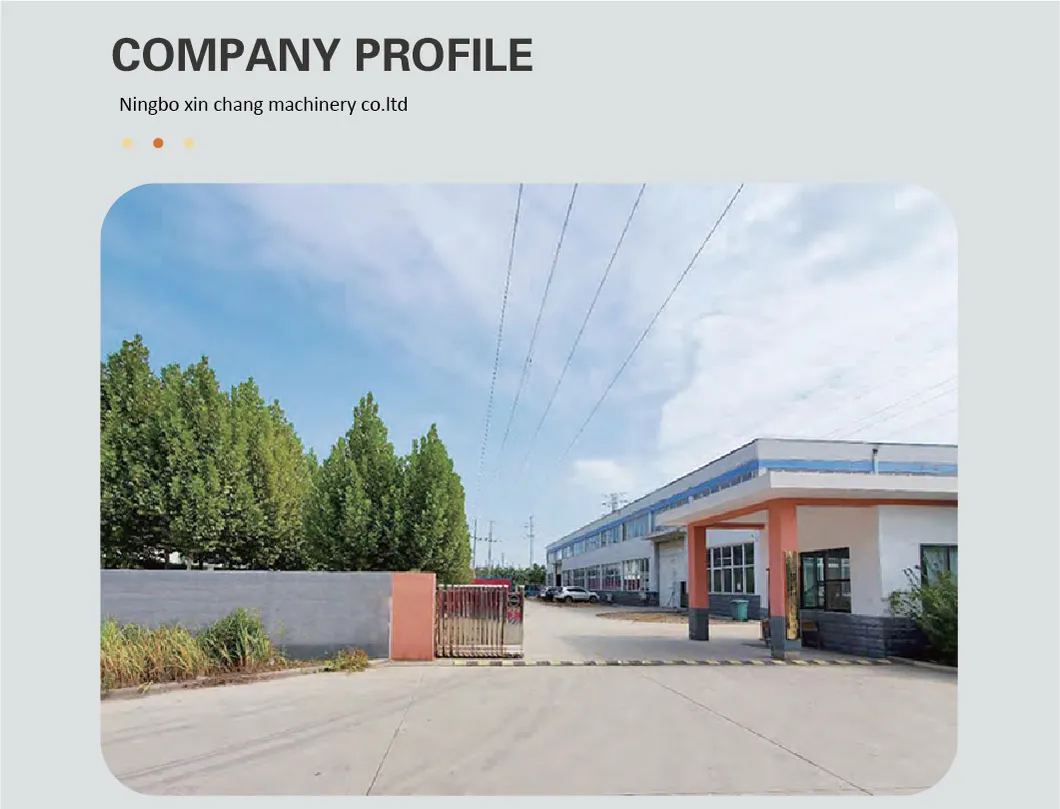

私たち、寧波新昌機械有限公司は、摩擦溶接機、抵抗溶接機、熱交換器装置の専門の設計者および製造業者です。当社の工場は20年以上このラインに属しており、10人以上の機械および電気の上級専門家がおり、合計200人以上のスタッフがおり、当社の機械は中国で有名です。 CCC、ISO9001、CE認証を取得しています。
